EZGO TXT 500 Amp Regen Speed Controller - Alltrax

$1,702.00
$846.95
(You save $855.05 )
SKU:
CON-XCT500TXT48
EZGO TXT 500 Amp Regen Speed Controller - Alltrax
EZGO TXT 500 Amp Regen Speed Controller - Alltrax EZGO TXT 500 Amp Regen Speed Controller - Alltrax EZGO TXT 500 Amp Regen Speed Controller - Alltrax

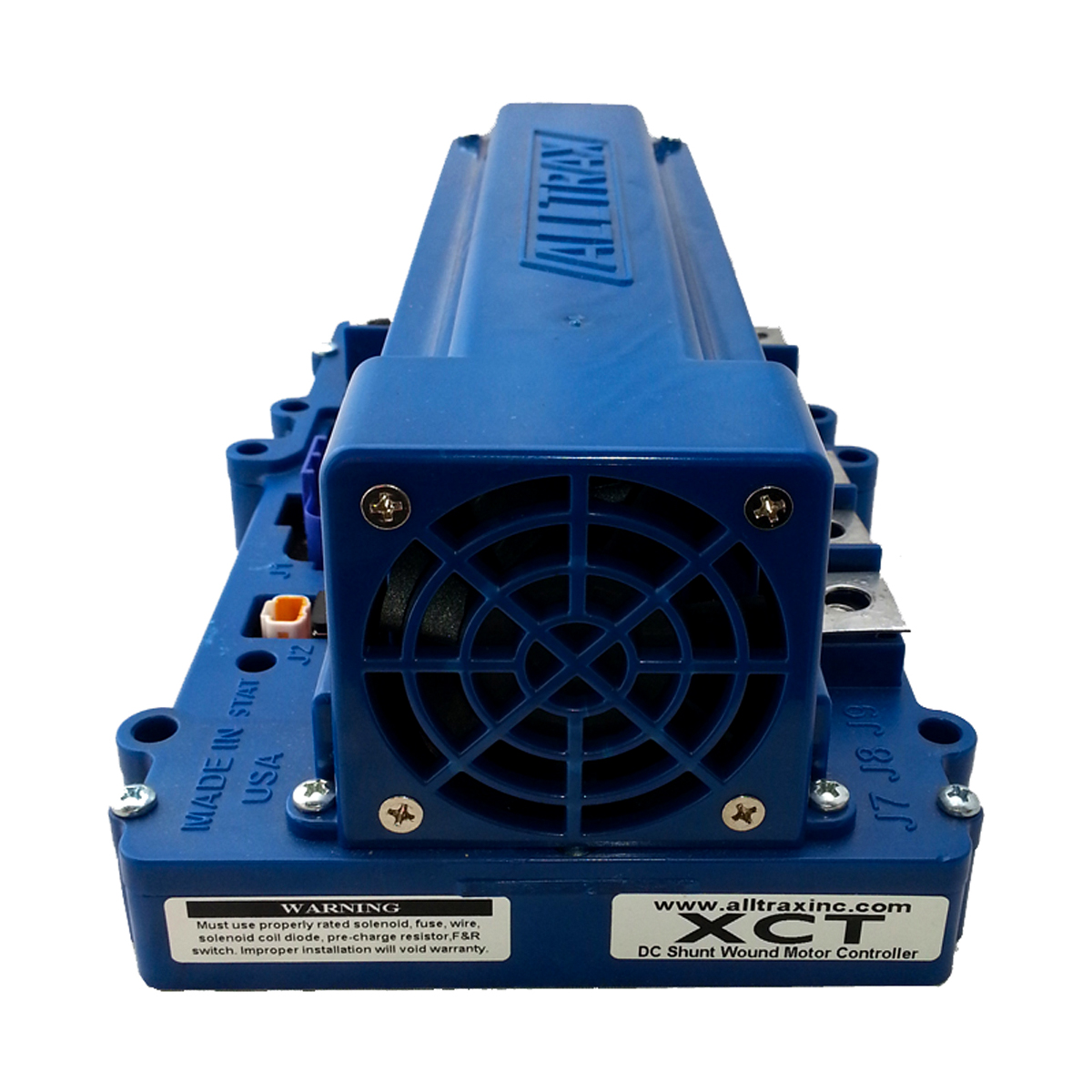

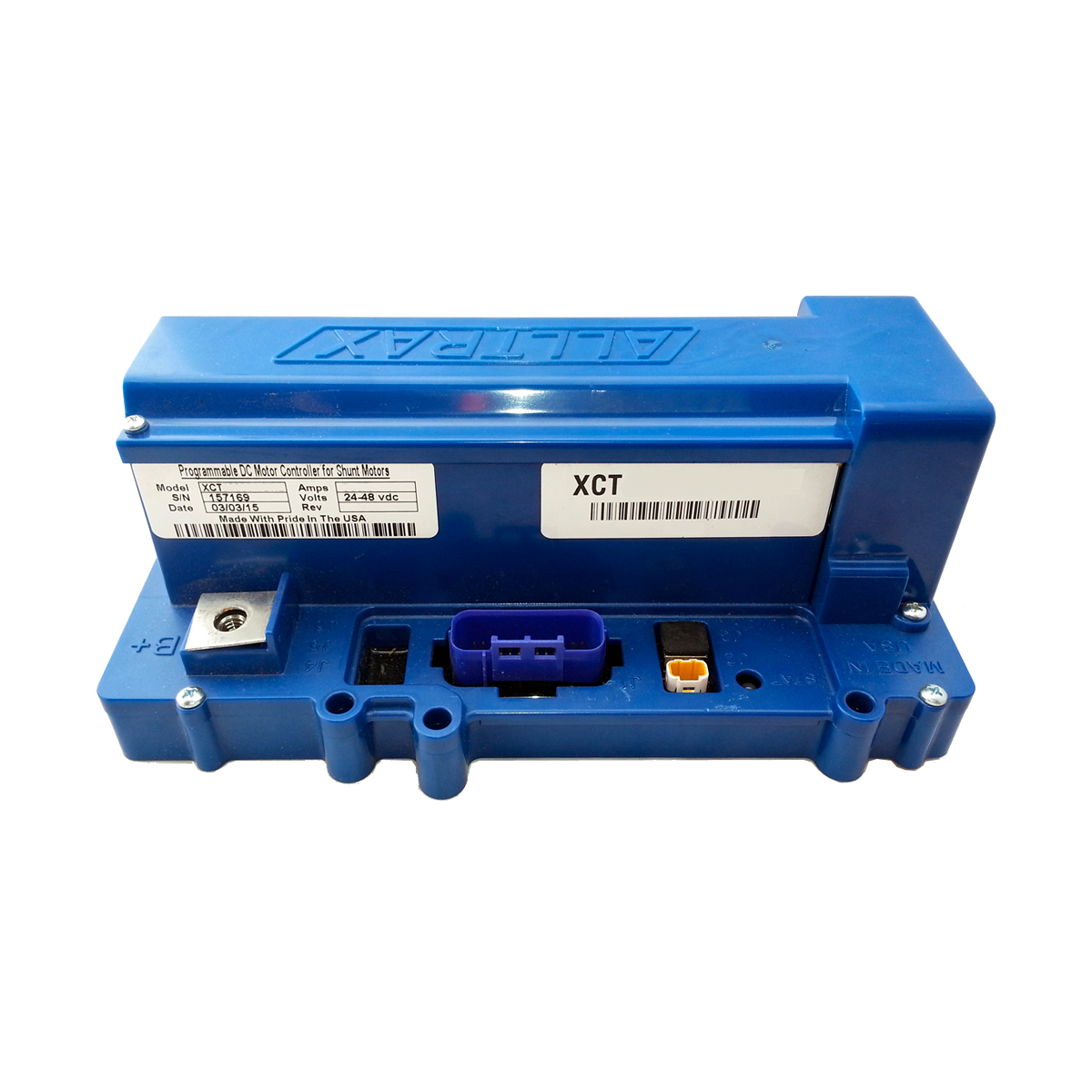

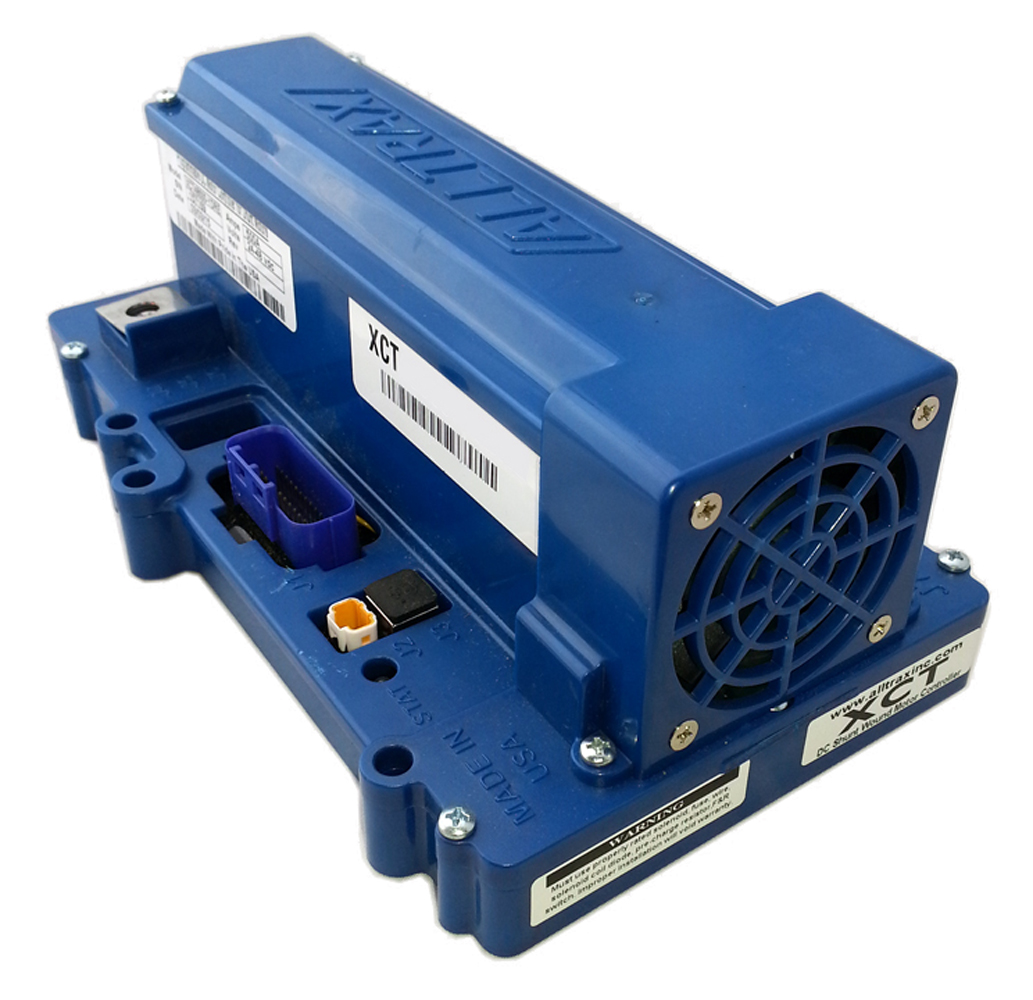

EZGO TXT48 500 Amp Controller

This 500 Amp Alltrax controller is compatible with all 48v Regen EZGO TXT models 1996 or later.

Includes:

  • 500 Amp Alltrax Controller
  • Fuses
  • Operators Manual
  • 5/16ths Power Lead Bolts

Features:

  • Native OEM connectors eliminate the need for adapter boards or cutting and jumping wires to install a controller.
  • USB programming port.
  • OEM style speed controller or Alltrax's "Go Fast" mode.
  • Fan Cooled.

Technical Specifications:

  • ABS + PC510 flame resistant thermal plastic enclosure
  • All copper heat sinks
  • Sealed epoxy UL-94-VO / 5VA flame rating
  • Adjustable undervoltage cutback 16-30 VDC
  • Adjustable overvoltage shutdown 30-60 VDC
  • Operating Frequency: 18k Hz
  • Voltage drop @ 100amps: <.18V
  • Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
  • Powered Up Standby Current <.02A (20mA)
  • Relay solenoid drive output current: 5amp peak, 1.0A Continuous
  • Power lead bolt thread size = 5/16th

**Proper current capacity solenoids required for use with all Alltrax controllers, DO NOT use stock solenoids with Alltrax Controllers.**

-->
