EZGO TXT 400 Amp Regen Controller - Alltrax

$1,408.00
$733.95
(You save $674.05 )
SKU:
CON-XCT400TXT48
EZGO TXT 400 Amp Regen Controller - Alltrax
EZGO TXT 400 Amp Regen Controller - Alltrax EZGO TXT 400 Amp Regen Controller - Alltrax EZGO TXT 400 Amp Regen Controller - Alltrax

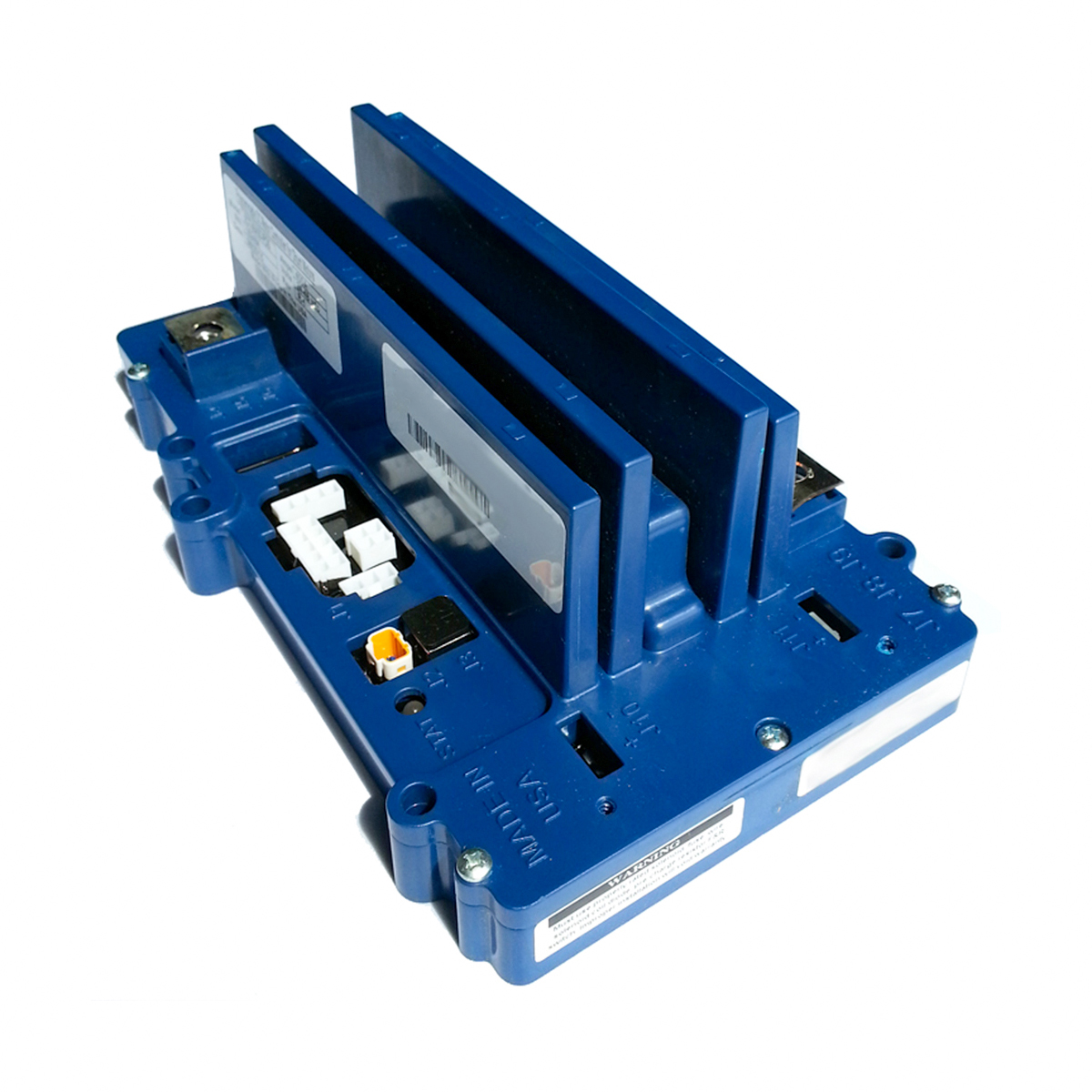

Alltrax EZGO TXT Rregen Controller

This 400 Amp Alltrax controller is compatible with all 36v & 48v EZGO Regen TXT models 1996 or later. Does not work with Series models.

Features:

  • Native OEM connectors eliminate the need for adapter boards or cutting and jumping wires to install a controller.
  • USB programming port.
  • OEM style speed controller or Alltrax's "Go Fast" mode.

Technical Specifications:

  • ABS + PC510 flame resistant thermal plastic enclosure
  • All copper heat sinks
  • Sealed epoxy UL-94-VO / 5VA flame rating
  • Adjustable undervoltage cutback 16-30 VDC
  • Adjustable overvoltage shutdown 30-60 VDC
  • Operating Frequency: 18k Hz
  • Voltage drop @ 100amps: <.18V
  • Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
  • Powered Up Standby Current <.02A (20mA)
  • Relay solenoid drive output current: 5amp peak, 1.0A Continuous
  • Power lead bolt thread size = 5/16th
-->
