EZGO TXT 300 Amp Regen Speed Controller - Alltrax

$1,222.00
$655.95
(You save $566.05 )
SKU:
CON-XCT300TXT48
EZGO TXT 300 Amp Regen Speed Controller - Alltrax
EZGO TXT 300 Amp Regen Speed Controller - Alltrax EZGO TXT 300 Amp Regen Speed Controller - Alltrax EZGO TXT 300 Amp Regen Speed Controller - Alltrax

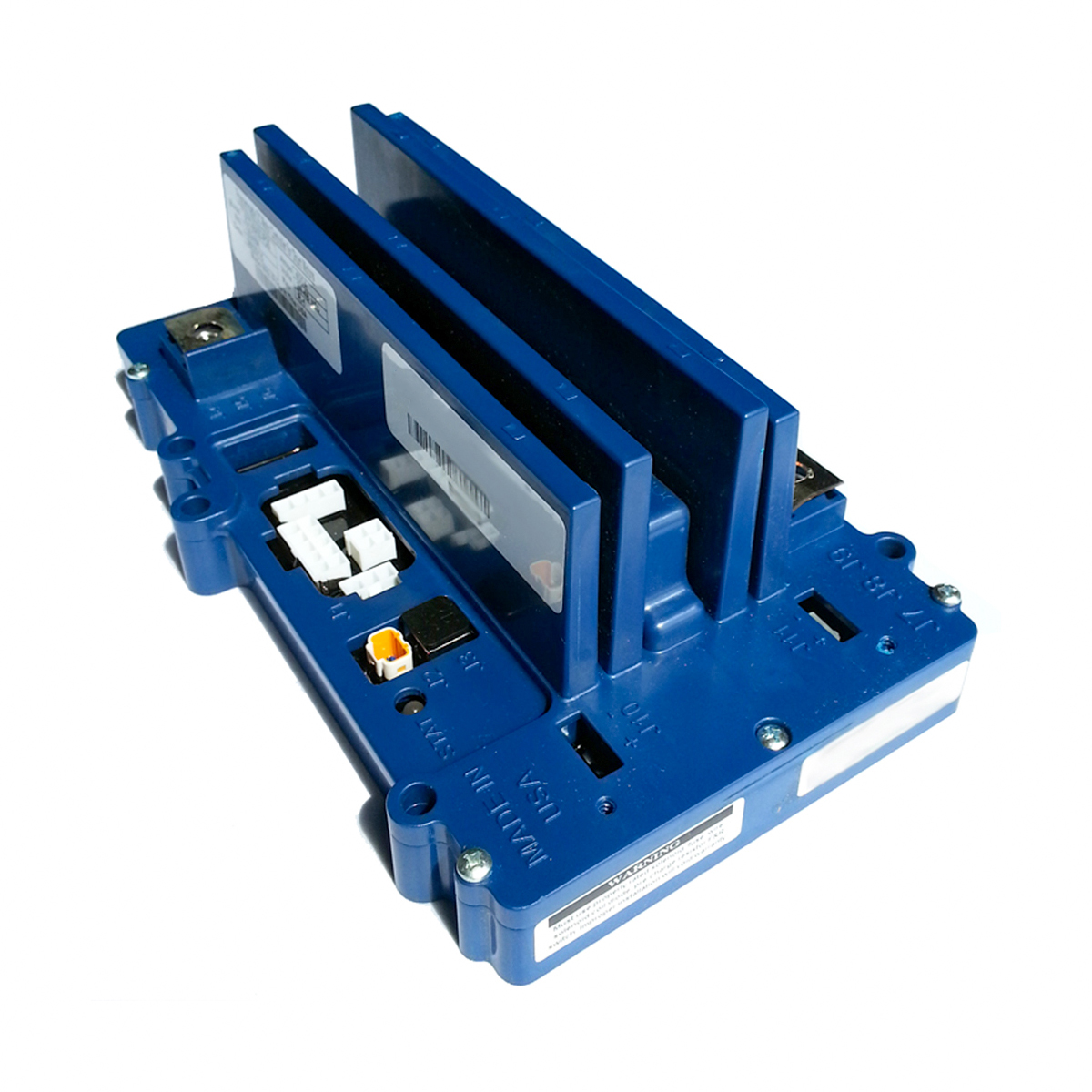

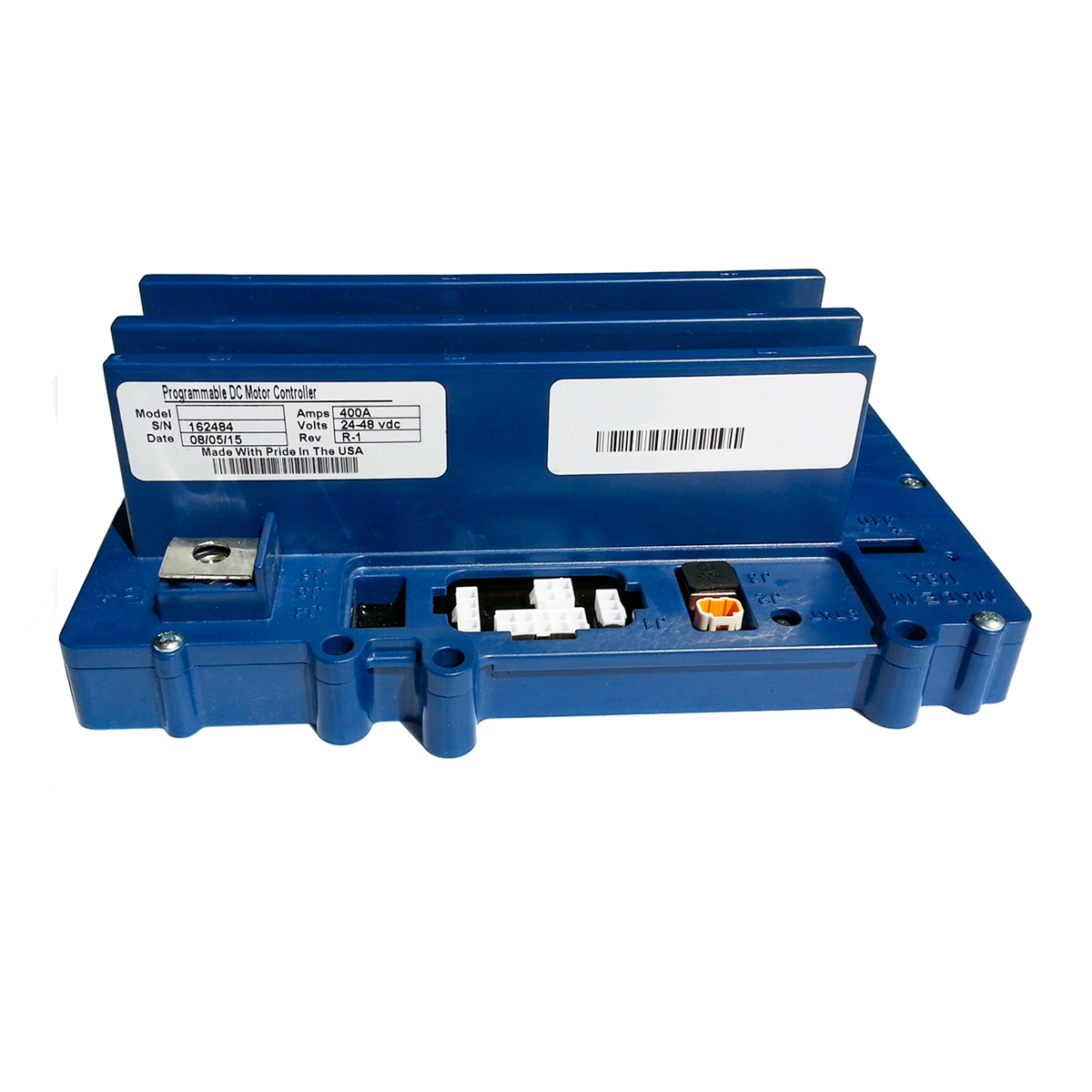

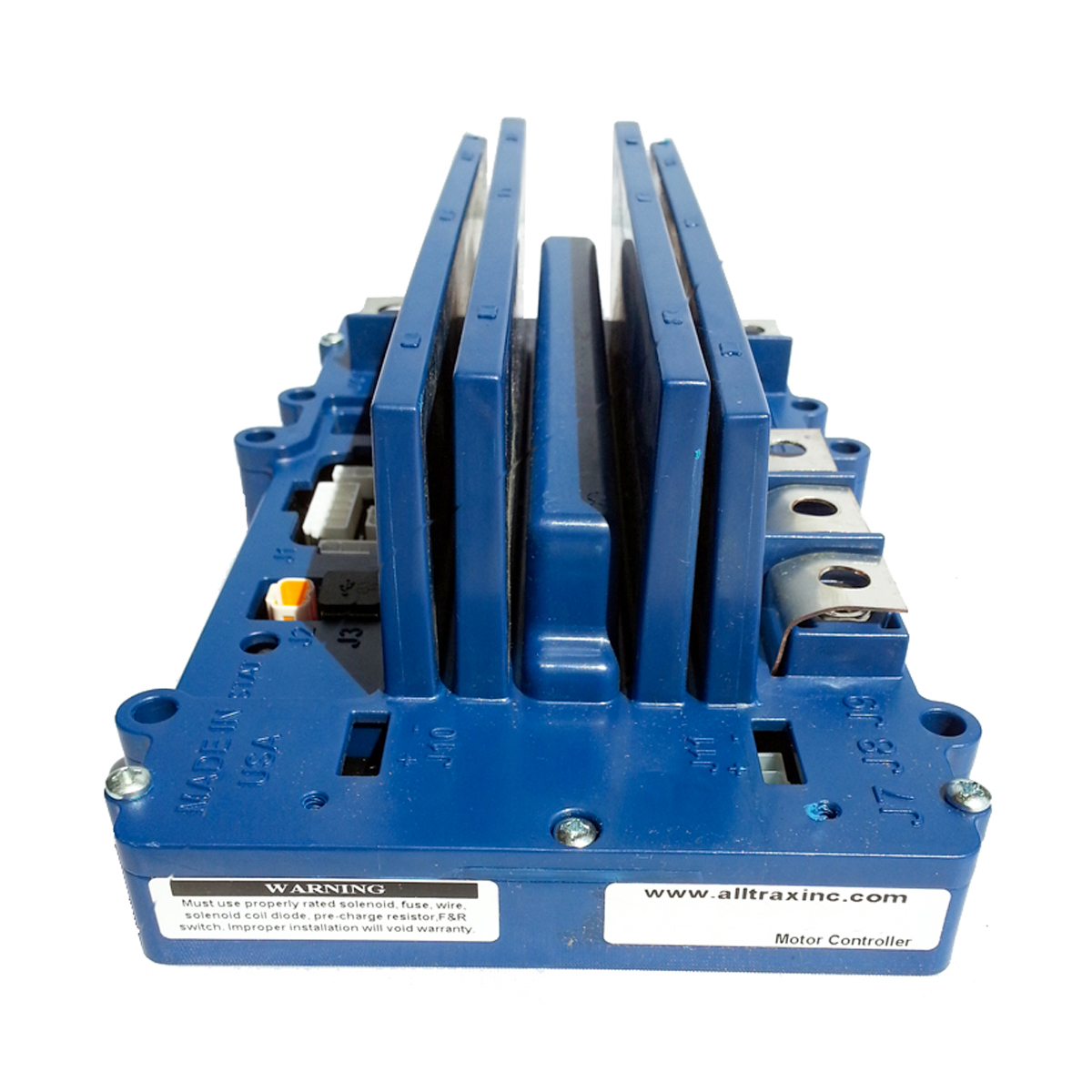

Alltrax EZGO TXT Regen Controller

This 300 Amp Alltrax controller is compatible with all 36v or 48v EZGO Regen TXT models 1996 or later. Does not work with Series models.

Features:

  • Native OEM connectors eliminate the need for adapter boards or cutting and jumping wires to install a controller.
  • USB programming port.
  • OEM style speed controller or Alltrax's "Go Fast" mode.

Technical Specifications:

  • ABS + PC510 flame resistant thermal plastic enclosure
  • All copper heat sinks
  • Sealed epoxy UL-94-VO / 5VA flame rating
  • Adjustable undervoltage cutback 16-30 VDC
  • Adjustable overvoltage shutdown 30-60 VDC
  • Operating Frequency: 18k Hz
  • Voltage drop @ 100amps: <.18V
  • Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
  • Powered Up Standby Current <.02A (20mA)
  • Relay solenoid drive output current: 5amp peak, 1.0A Continuous
  • Power lead bolt thread size = 5/16th
-->
