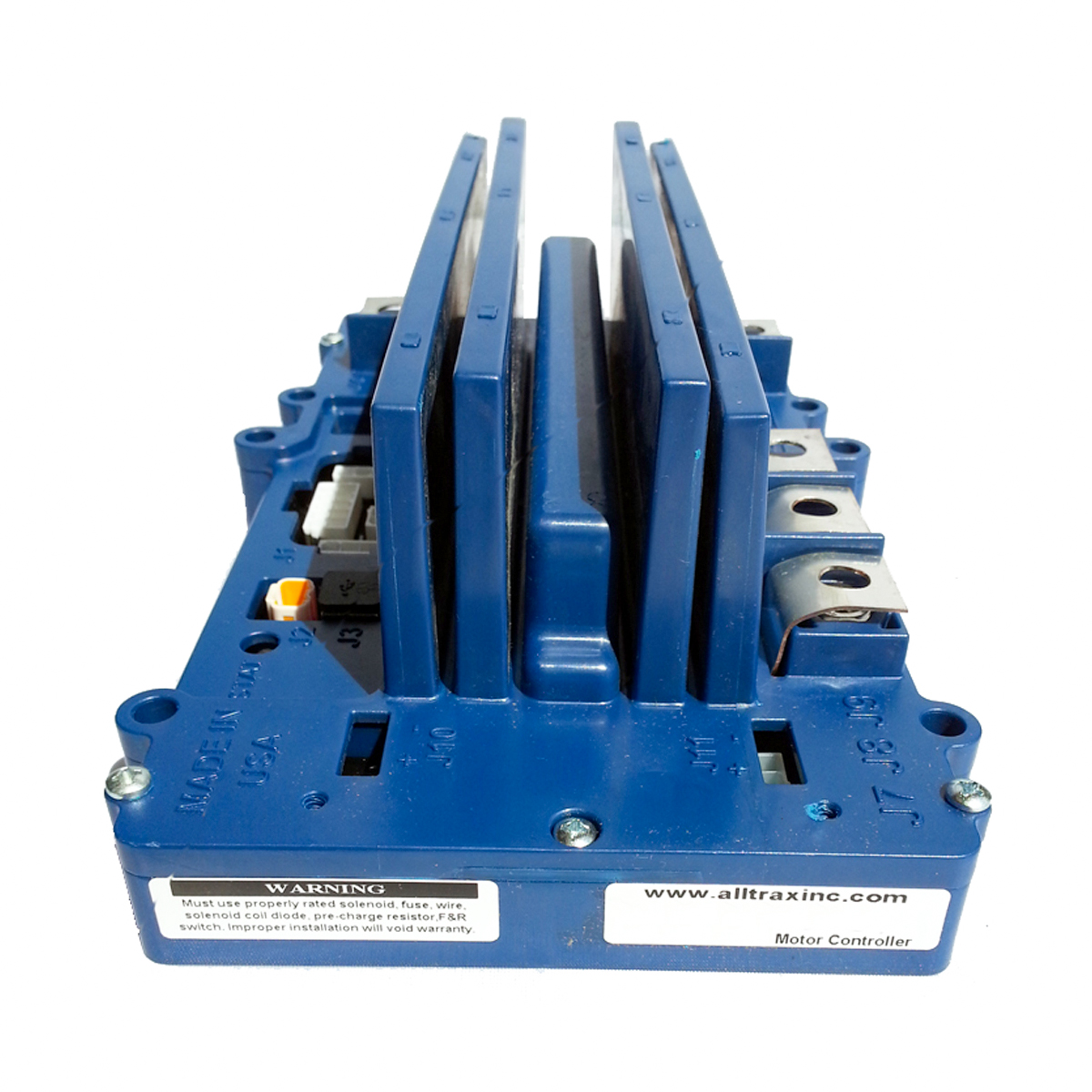

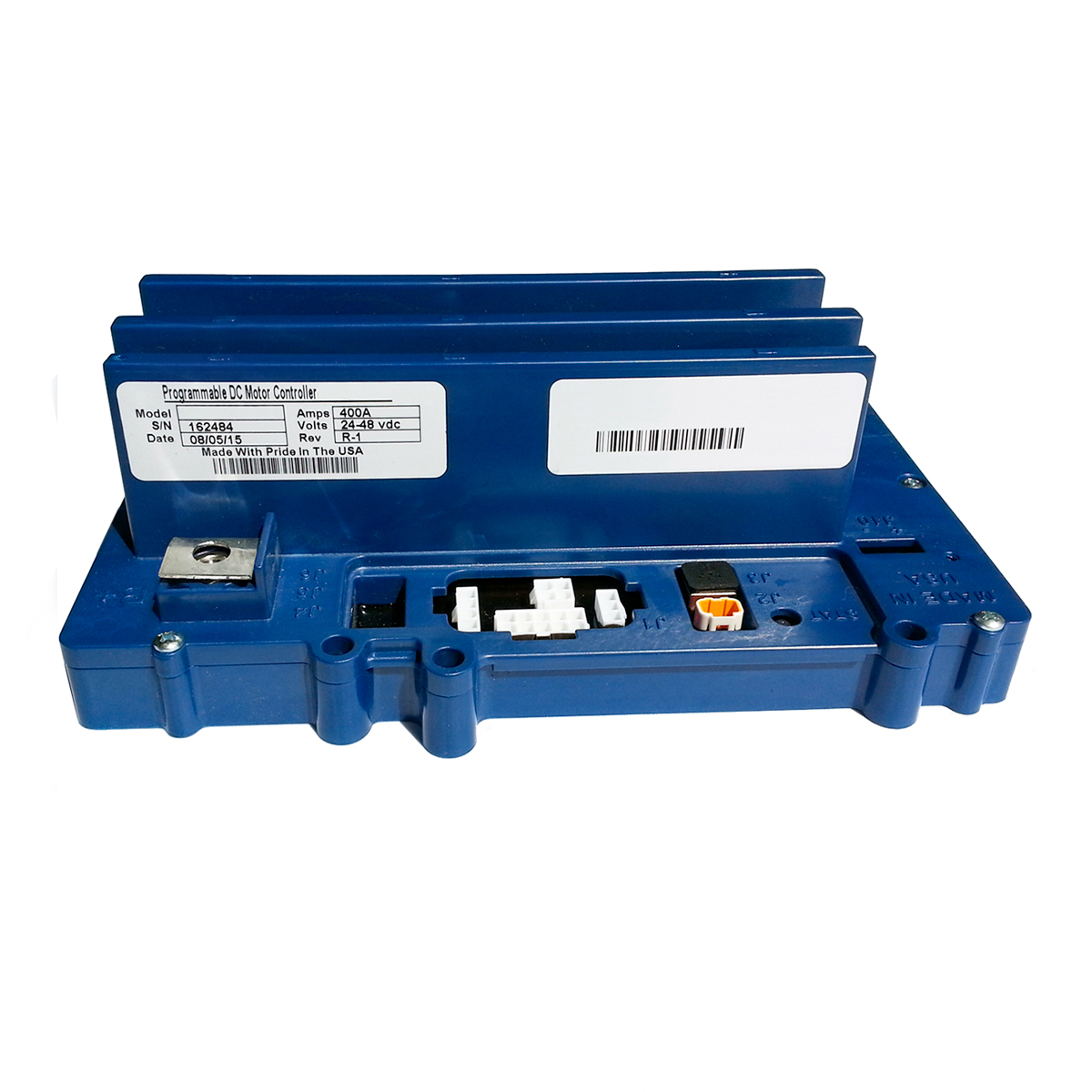

Alltrax EZGO DCS Controller
This 300 Amp Alltrax controller is compatible with all 36v or 48v EZGO DCS Regen models 1996 or later.
Features:
- Native OEM connectors eliminate the need for adapter boards or cutting and jumping wires to install a controller.
- USB programming port.
- OEM style speed controller or Alltrax's "Go Fast" mode.
Technical Specifications:
- ABS + PC510 flame resistant thermal plastic enclosure
- All copper heat sinks
- Sealed epoxy UL-94-VO / 5VA flame rating
- Adjustable undervoltage cutback 16-30 VDC
- Adjustable overvoltage shutdown 30-60 VDC
- Operating Frequency: 18k Hz
- Voltage drop @ 100amps: <.18V
- Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
- Powered Up Standby Current <.02A (20mA)
- Relay solenoid drive output current: 5amp peak, 1.0A Continuous
- Power lead bolt thread size = 5/16th
